ArduFlyer/APM 2.5.x u-Blox CN06 Plus GPS Receiver

ArduFlyer/APM 2.5.x u-blox CN06 Plus GPS Receiver

ArduFlyer/APM 2.5.x External Magnetometer

ArduFlyer/APM 2.5.x Status LEDs

**********************************************

APM 2.5 Hardware ArduPilot Firmware Rctimer ArduFlyer Tutorials & Discussion:

ArduFlyer Tutorials & Discussion

**********************************************

Features and Specifications:
GPS
u-blox UBX-G6010-ST
5 Hz update rate
25 x 25 x 2 mm ceramic patch antenna
LNA and SAW filter
Rechargeable 3V lithium backup battery
Low noise 3.3V regulator
I2C EEPROM for configuration storage
GPS Power and Fix indicator LED
40.64 x 66.42 x 7.8 mm total size, 12.4 grams
Mounting hole diameter: 3.3mm
Mounting hole installation position 61.09 x 35.31mm
Magnetometer
HMC5883L Magnetometer
ArduFlyer/APM 2.5.x compatible external Magnetometer I2C 3.3V interface
ArduFlyer/APM 2.5.x compatible Status LEDs for ARM and GPS

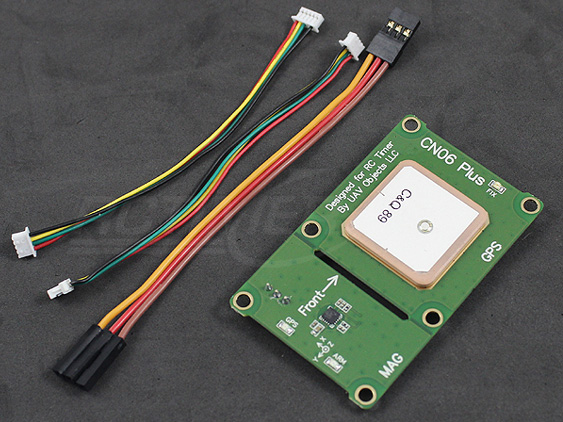

Package Content

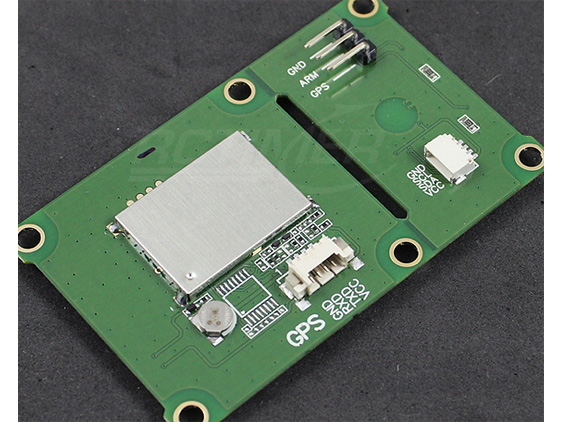

CN06 Plus PCB
Cable 100mm ArduFlyer/APM 2.5.x compatible GPS 5-pin JST
Cable 100mm ArduFlyer/APM 2.5.x compatible I2C 4 pin JST
Cable 100mm ArduFlyer/APM 2.5.x compatible Status LED 0.1
