Rctimer Fixhawk/3DR Pixhawk 32bit Flight Controller

Fixhawk
Price:
USD
$99.99
    Please select the information you wantX
Quantity:
-
+
(0 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews(1)


Fixhawk is 100% compatible with Pixhawk/PX4, an advanced autopilot system designed by the PX4 open-hardware project. It features advanced processor and sensor technology from ST Microelectronics® and a NuttX real-time operating system, delivering incredible performance, flexibility, and reliability for controlling any autonomous vehicle.

The ben-efits of the Fixhawk system include integrated multithreading, a Unix/Linux-like programming environment, completely new autopilot functions such as Lua scripting of missions and flight behavior, and a custom PX4 driver layer ensuring tight timing across all processes. These advanced capabilities ensure that there are no limitations to your autonomous vehicle. Fixhawk allows existing APM and PX4 operators to seamlessly transition to this system and lowers the barriers to entry for new users to participate in the exciting world of autonomous vehicles.

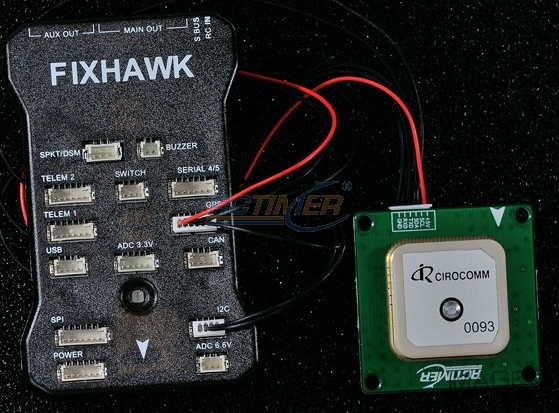

The flagship Fixhawk module will be accompanied by new peripheral options, including a digital airspeed sensor, support for an external multi-color LED indicator and an external magnetometer. All peripherals are automatically detected and configured.
Note: Fixhawk is a PPM-input autopilot, which means that it gets RC input from a single cable to the receiver, either via the PPM port, the Futaba S.BUS port, or the special satellite receiver port for Spektrum gear. Most modern RC receivers allow for PPM output, but some, such as non-S.BUS Futaba receivers, do not. If your receiver does not support PPM output, please order a PPM encoder board

Fixhawk includes:
 •Fixhawk autopilot x1
 •MicroSD 4G x1 ★Mounted on Fixhawk★
 •SD Adapter x1
 •30mm Buzzer x1
 •E-Switch Safety switch button x1
 •GPS/Radio Cable 300mm x2
 •OSD Cable 200mm x1
 •PPM/S.BUS. Receiver Cable 100mm x1



Features
Advanced 32 bit ARM Cortex® M4 Processor running NuttX RTOS

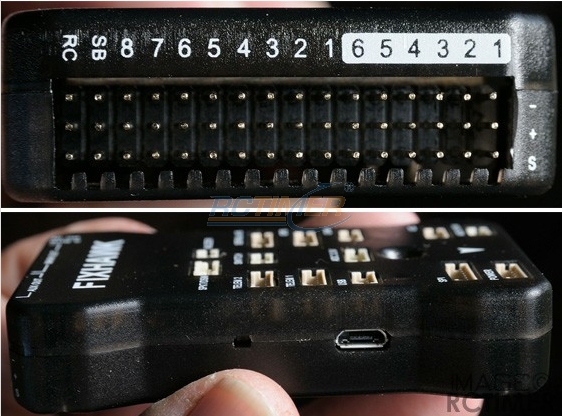

14 PWM/servo outputs (8 with failsafe and manual override, 6 auxiliary, high-power compatible)
Abundant connectivity options for additional peripherals (UART, I2C, CAN)
Integrated backup system for in-flight recovery and manual override with dedicated processor and stand-alone power supply
Backup system integrates mixing, providing consistent autopilot and manual override mixing modes
Redundant power supply inputs and automatic failover
External safety button for easy motor activation
Multicolor LED indicator
High-power, multi-tone piezo audio indicator

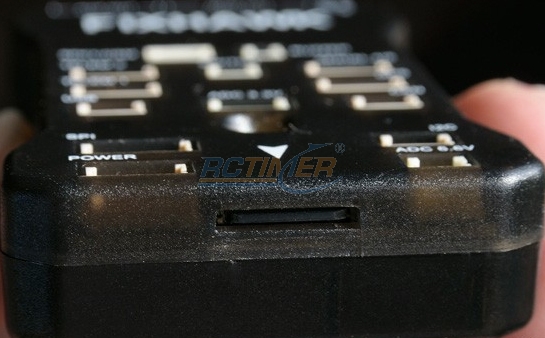

microSD card for long-time high-rate logging

Specifications
Microprocessor:
32-bit STM32F427VIT6 Cortex M4 core with FPU 168 MHz/256 KB RAM/2 MB Flash
32 bit STM32F103C8T6 failsafe co-processor
Sensors:
ST Micro L3GD20 3-axis 16-bit gyroscope
ST Micro LSM303D 3-axis 14-bit accelerometer / magnetometer
