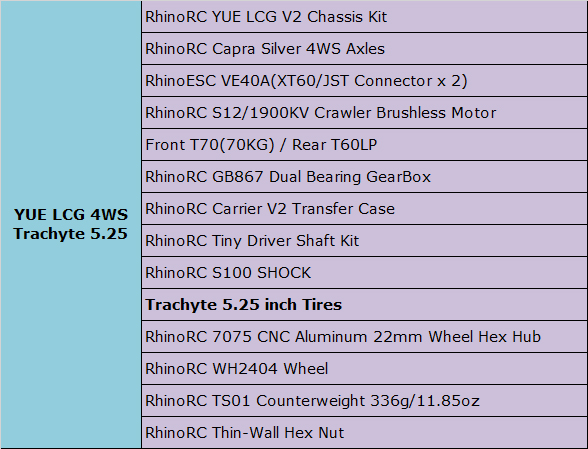

Rhino YUE LCG 4WS - RTR-KIT Edition
Weight: 3.9 lbs (1.8Kg)
30% OD
Front axles:
portal gear: 15-20T, diff gear: 8/24T
Rear axles:
portal gear: 12-23T, diff gear: 8/24T

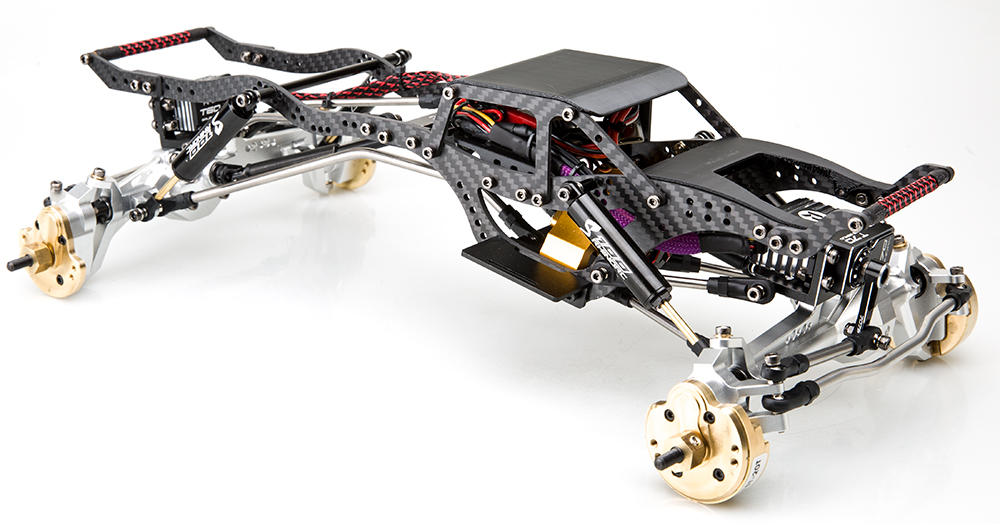

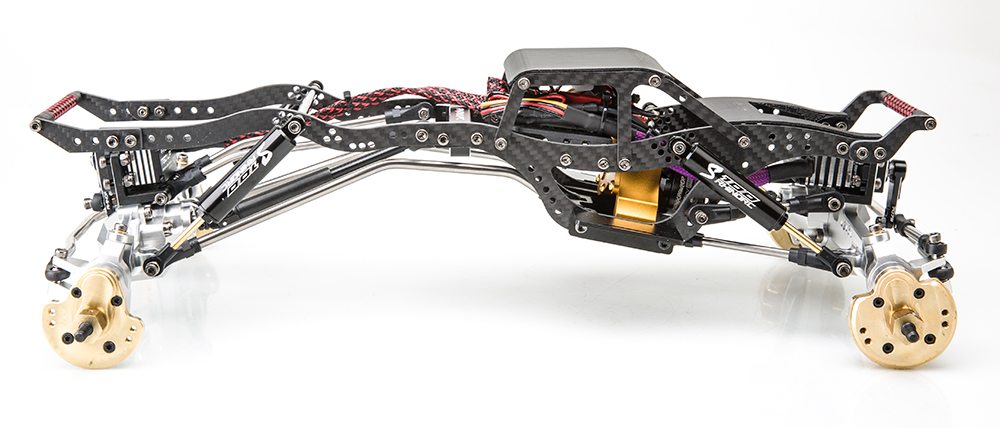

CNC Machined Aluminum Axles,billet aluminum case with hardened steel gears, full ball bearings,Suspension: 4 link front and rear, solid titanium links.Chassis: Carbon fiber.
Steel Internal Heavy Duty Gears,CVD and shafts made by 20CR and 40CR excellent quality alloy steel by QPQ Nitriding hardened.

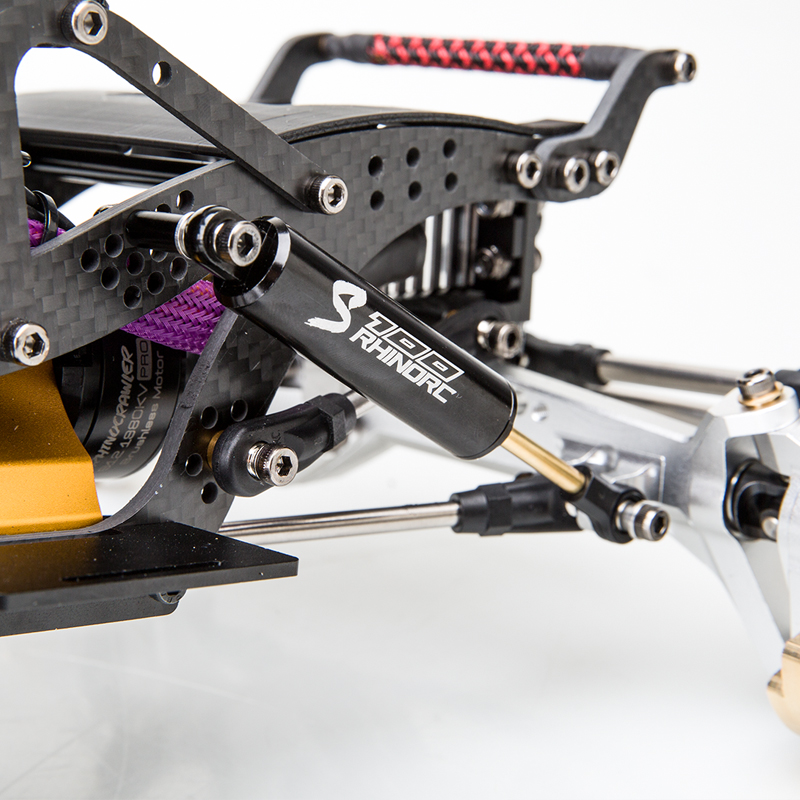

Power allocation with Rhino VE40A RM-S12 1900kv Brushless Outrunner Motor Combo. Shocks: Rhino RS100 100mm aluminum body-can be oil-filled.

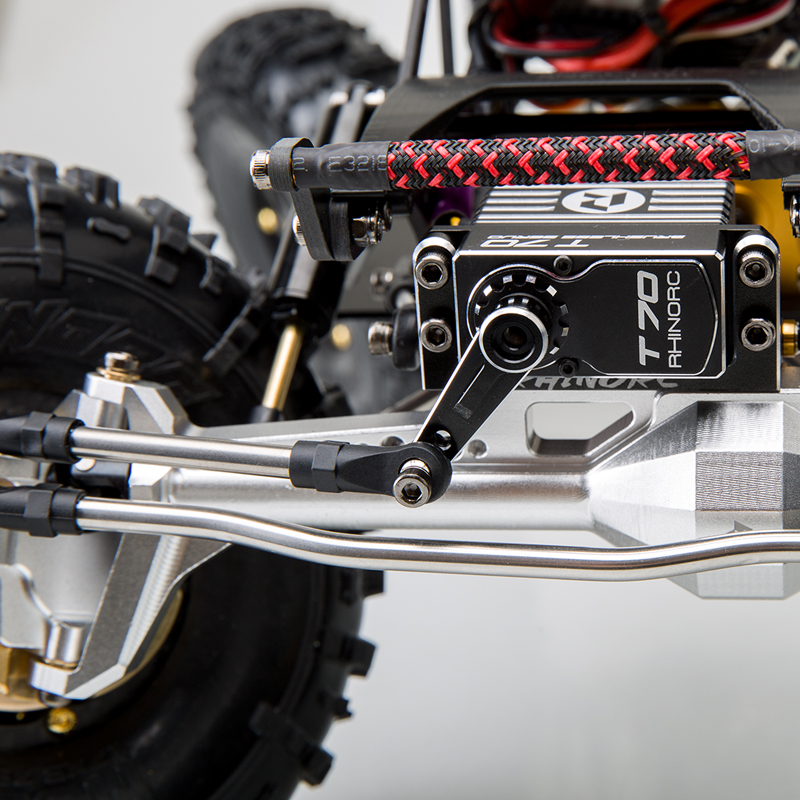

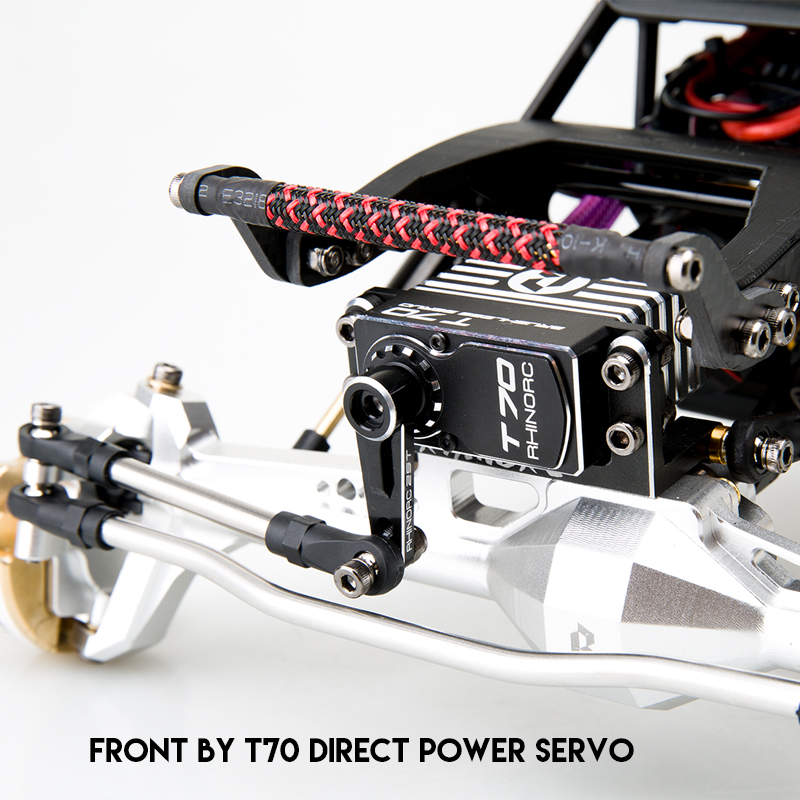

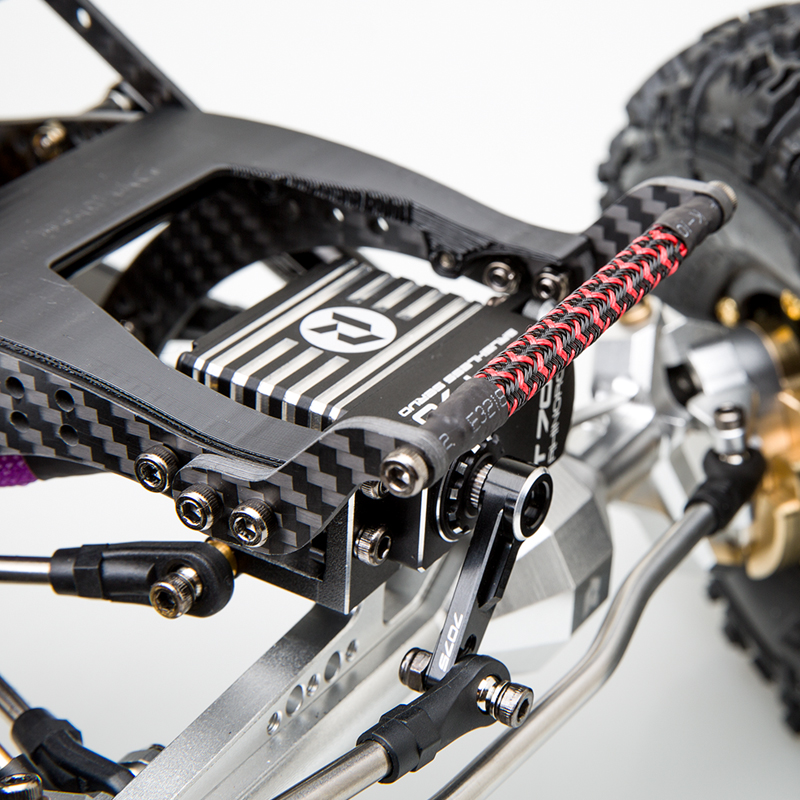

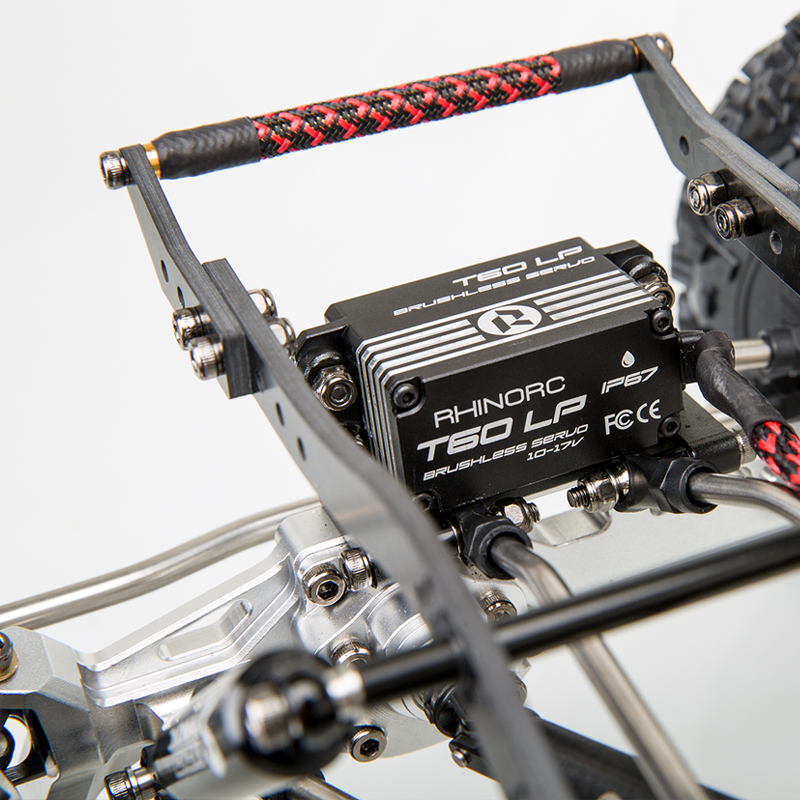

For Servo, we used RhinoRC T70(70KG) driect power servo (support 7-17V input) on Front Axles, RhinoRC T60LP70(60KG) driect power servo (support 7-17V input) on Rear Axles, high performance digital servo, Extra strong patent steel gears.
