Manual:
This ESC preloaded AM32 custom firmware. It's optimized for crawler and makes your car run super smooth and quiet, but it is also suitable for a variety of 1/18 1/14 1/12 /1/10 scale or smaller cars. A built-in adjustable four voltage BEC with a maximum current 6A to apply the high torque servo. In addition, the e-Switch that comes with it avoids failures caused by harsh environments.
All wires are pre-soldered.
Feature
AM32 custom firmware
Sinewave startup allows the motor smoothly at ultra-low speeds Variable drive frequency
Low voltage, throttle loss and stalled rotor protection
High-performance 32-bit MCU
E-switch with long life and waterproof
Specs
Battery: 2~5S Lipo
Current: 30A cont.
BEC: 6A, output 6.2~8.2V adjustable in GUI Tool
Waterproof: ESC not supported / e-switch supported
FAN: not include, solder pads for power is reserved

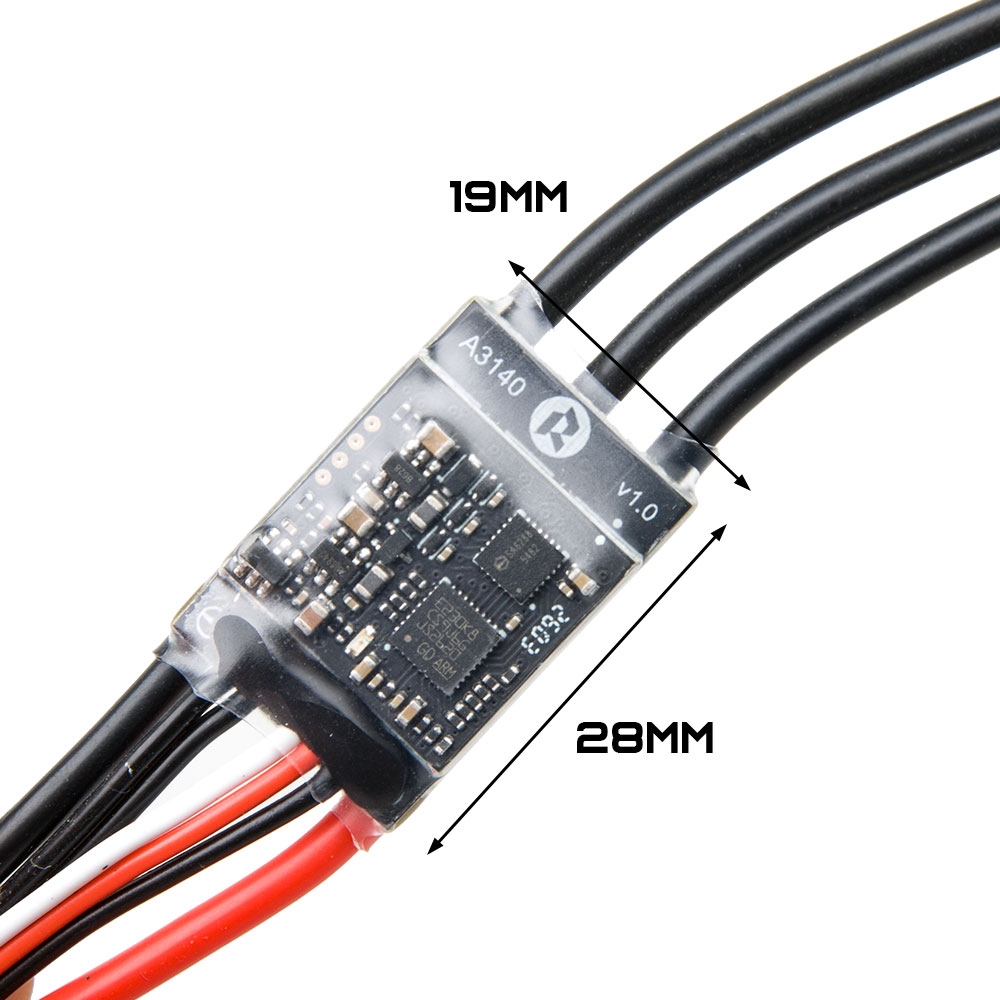

Dimensions: 28x19mm (without wires)
USB-Link(Included)
Suitable for a variety of ESCs, such as AM32/BL32, etc., connect ESC to computer for configuration or upgrade firmware.
It is portable and easy to use, just connect the ESC signal plug, connect the USB Type-C cable to the computer and install the VCP driver.
GUI settings:
Throttle range calibration video:
