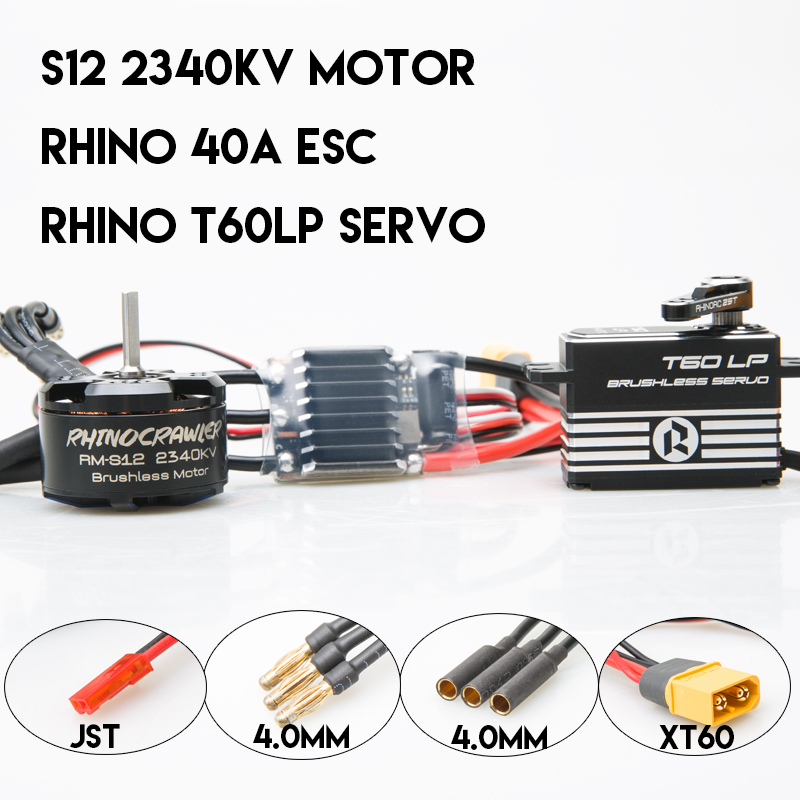

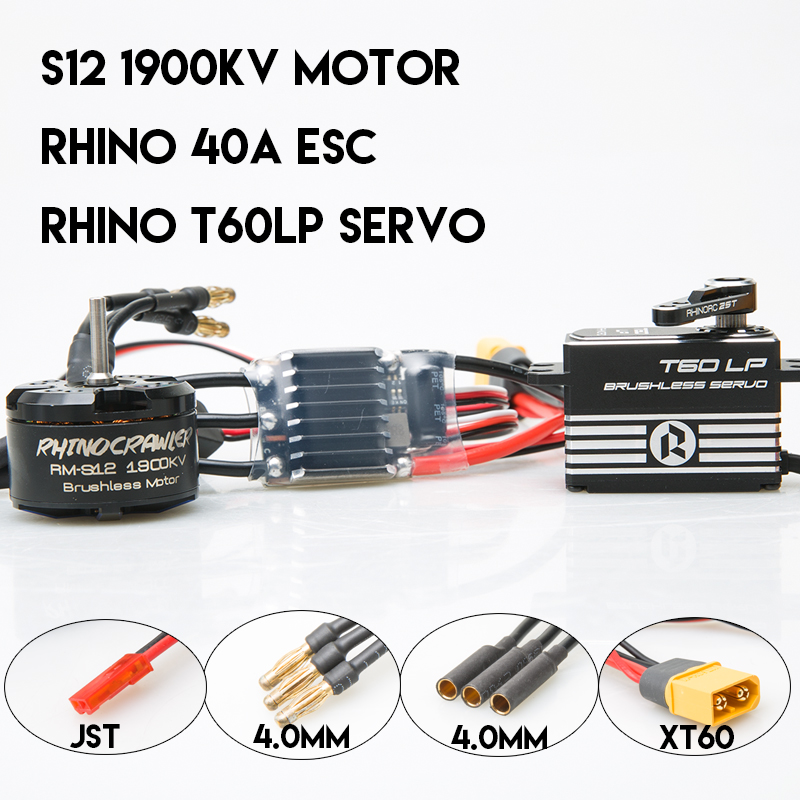

RhinoRC Power And Servo System ESC40A + S12 + T60LP Kit

RhinoRC released the optimized power and servo system for your rig, it is perfect for your rig at 70oz~ 90oz, soomth and powerful, and we recommended this kit work with 4S, the Torque of T60LP brushless servo direct power can reach 66.0 kg-cm @ 16.8V.

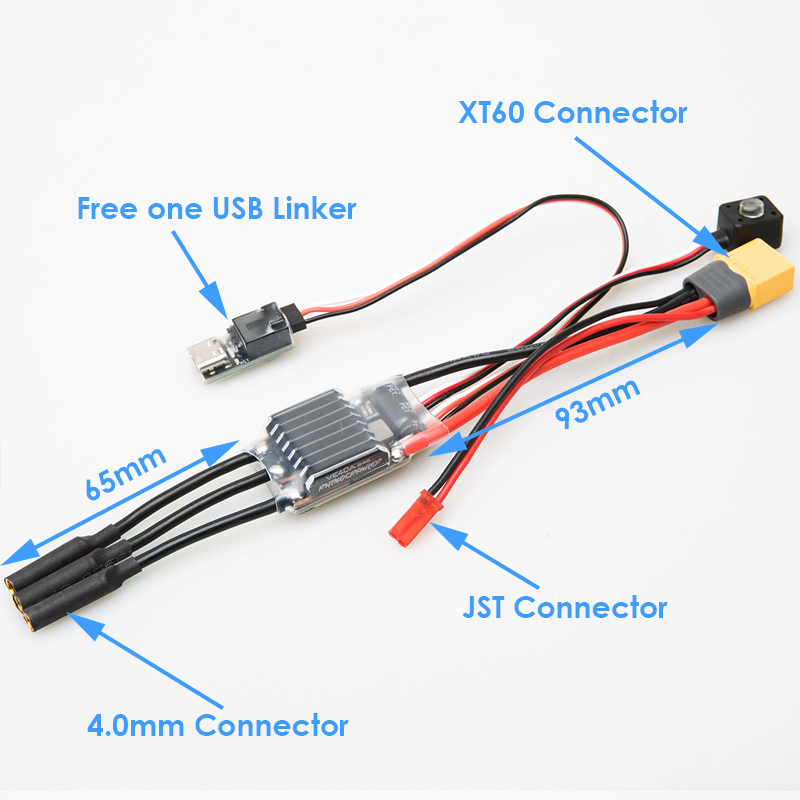

VE40A Specs:
Product Num.: A3100
Battery: 2~4S Lipo
Current: 40A cont.
BEC: max 3A, output 5.2~8.2V adjustable by DIP switch
Waterproof: ESC not supported / e-switch supported
Soldered XT60 Connector for battery, JST connector for servo, 4.0mm Bullet Plug Connector to motor

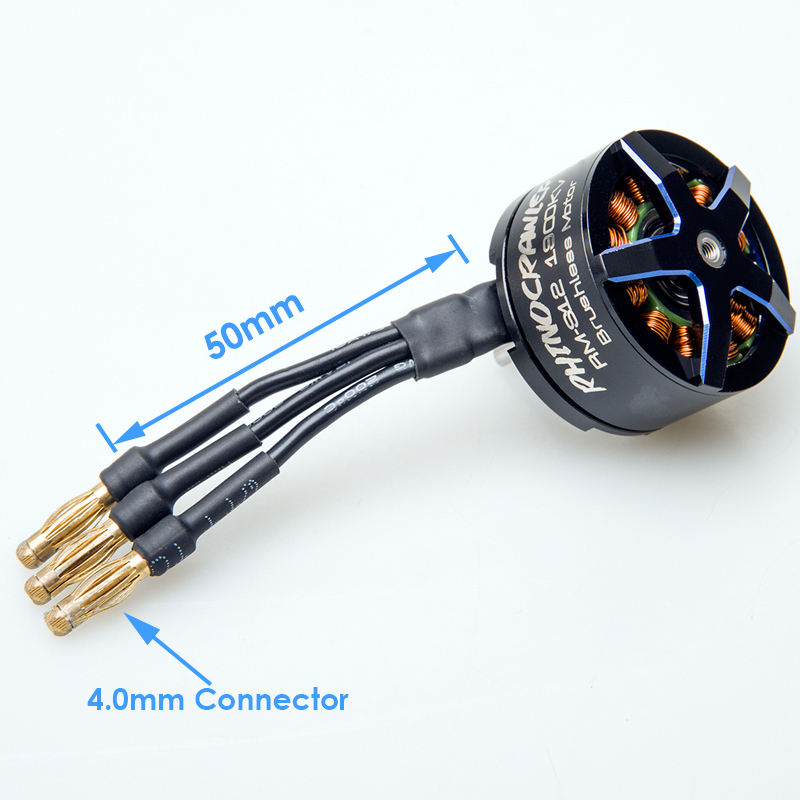

S12 Crawler Motor Specs:
KV: 1900KV / 2340KV
14 pole 12 slot stator
8.4V -16.8V (2-4S) LiPo
1/8" D (3.17mm) shaft output
25mm Mounting holes for M3 screws
84g with wires, without connector
35mm diameter x 24mm long
28x12mm stator
Soldered 4.0mm Bullet Plug Connector to motor

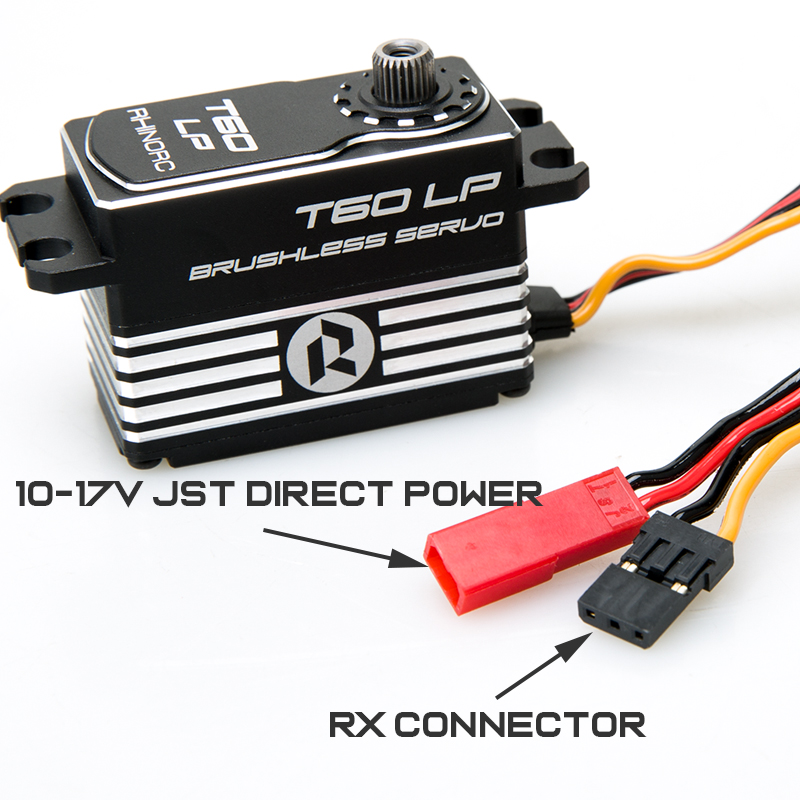

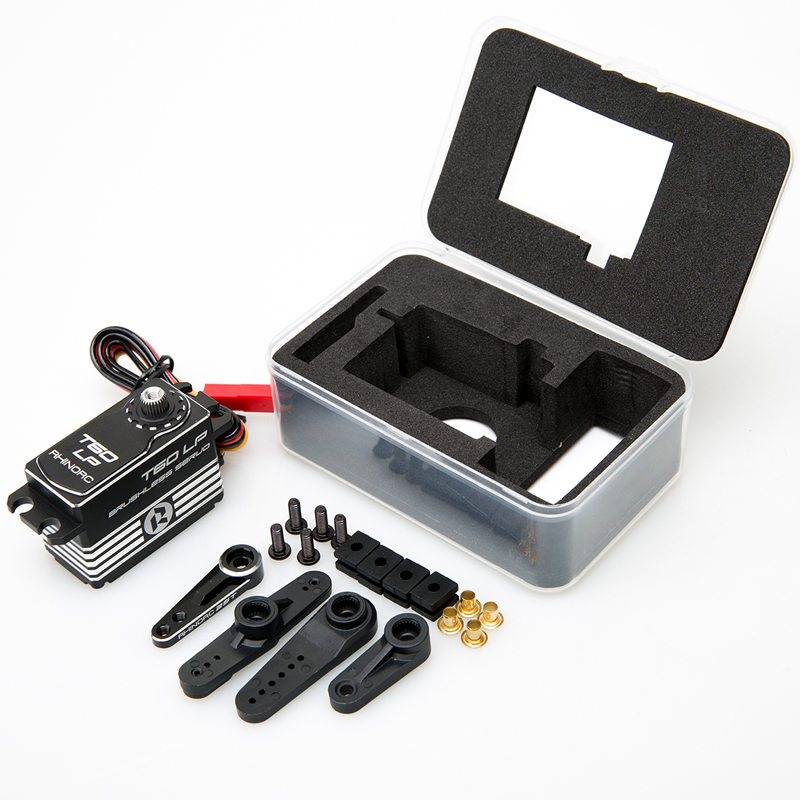

T60LP Direct Power Brushless Servo:
Ultra light unique design with heat sink machining
High performance digital servo
Strengthen high chrome steel shaft
Extra strong patent steel gears
Super strong three ball bearings
High efficiency 4-Pole Brushless Motor
Full CNC Aluminium hulls and structure
Ideal for 1/8 Scale On road, off road, Truck, Boat, Airplane, Helicopter, Robot and engine etc.

Input Voltage: 10-17V
Size: 40*20.2*29.5mm
Connector: TYU+JST 300mm/22AWG

Package included:
1 set Rhino 40A ESC
1 set Rhino S12 1900KV or 2340KV Motor
1 set Rhino T60LP Servo
