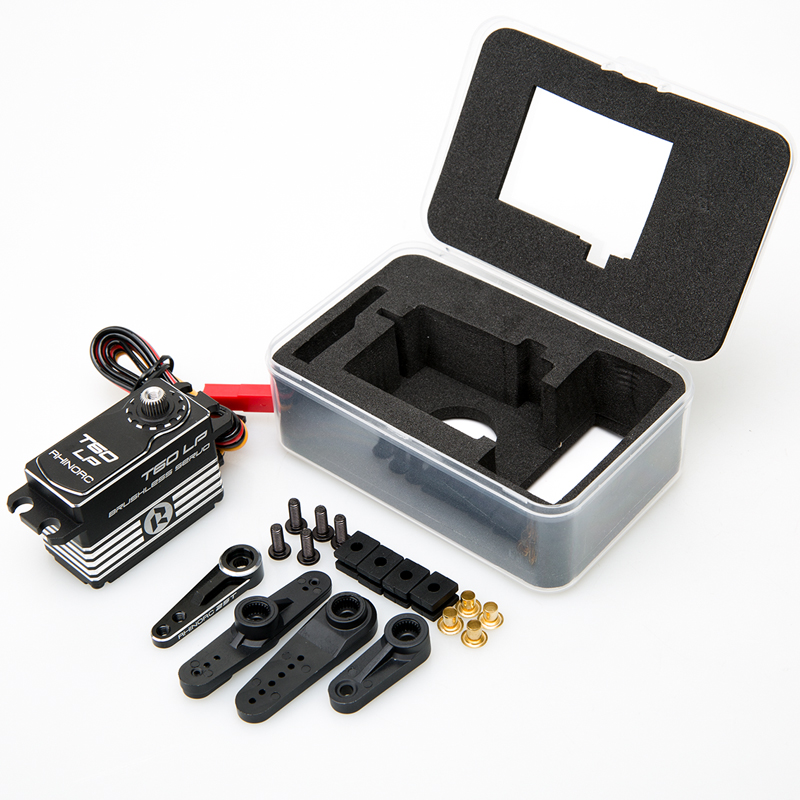

T60LP Low Profile 17V Brushless Direct Power Servo

RhinoRC T60LP Brushless Servo with the help of the long lifespan 4-Pole Brushless Motor which can reach almost 66kg-cm super torque with a speed of 0.083sec at 16.8V. T60LP servo is made in heat sink case design for fast heat dissipation, added the extra patent steel gears, super smooth three ball bearings and the strengthen high chrome 2mm steel shaft for high precision digital controlling. It is a high performance standard digital servo perfect for scale crawlers, 1/10 & 1/8 scale buggies and trucks cars.

Feature

Ultra light unique design with heat sink machining
High performance digital servo
Strengthen high chrome steel shaft
Extra strong patent steel gears
Super strong three ball bearings
High efficiency 4-Pole Brushless Motor
Full CNC Aluminium hulls and structure
Ideal for 1/8 Scale On road, off road, Truck, Boat, Airplane, Helicopter, Robot and engine etc.

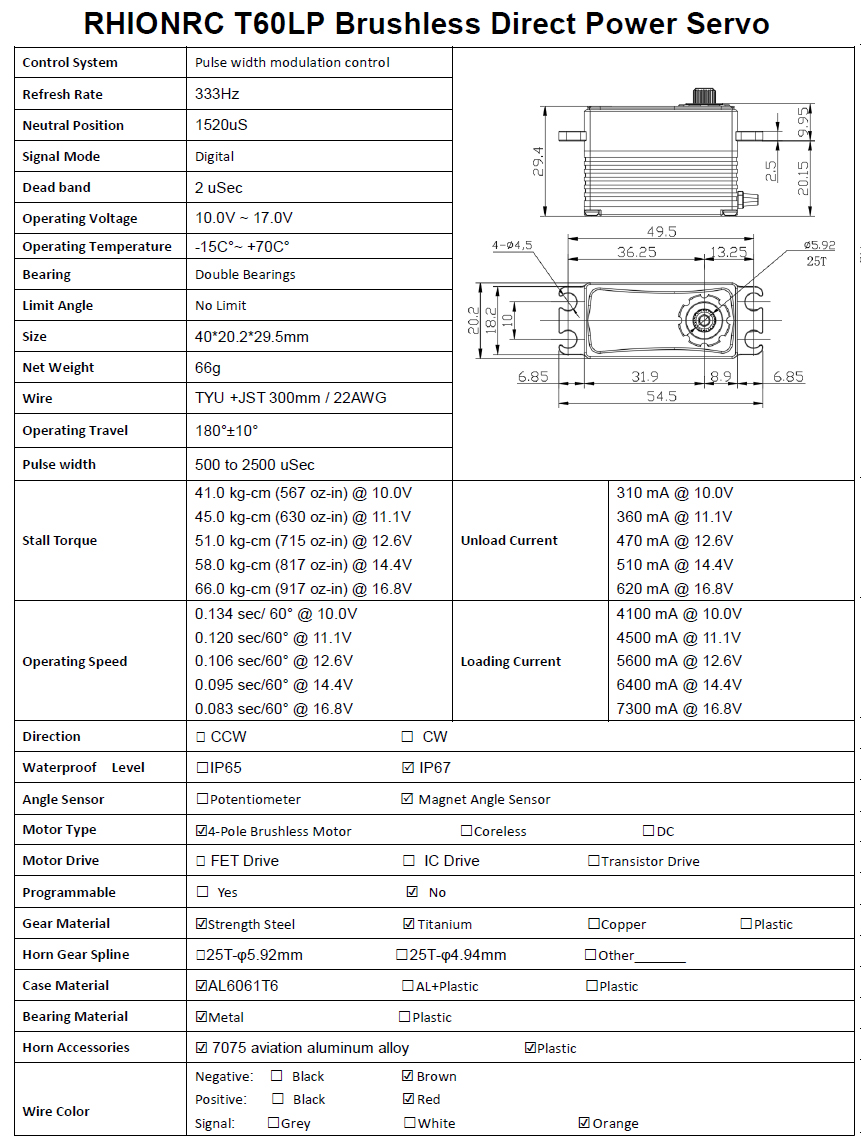

Input Voltage: 10-17V
Size: 40*20.2*29.5mm

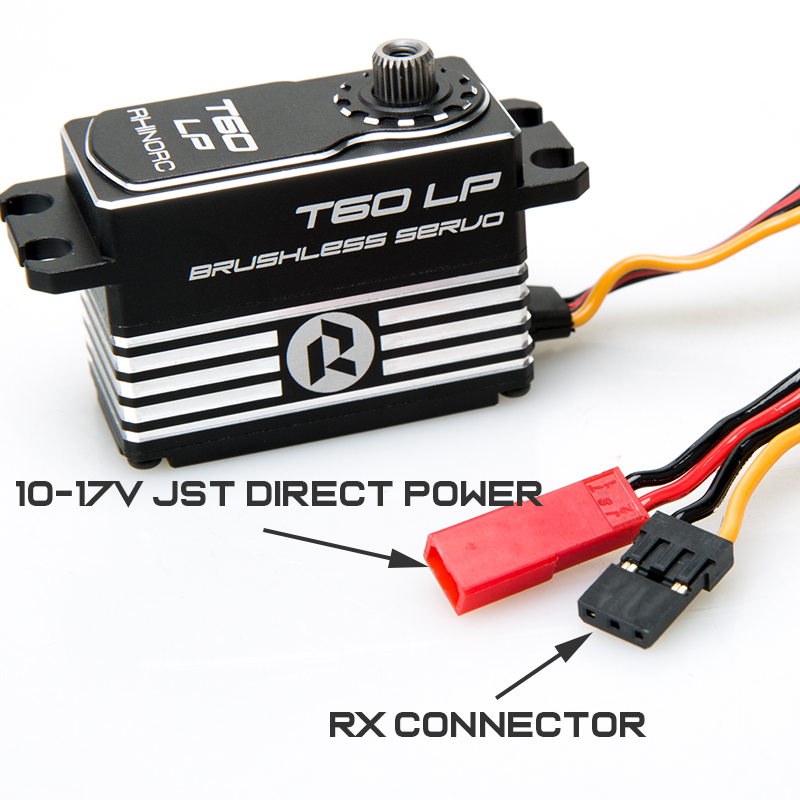

Connector: TYU+JST 300mm/22AWG

Unload Current:

320 mA @ 10.0V
380 mA @ 11.1V
480 mA @ 12.6V
530 mA @ 14.4V
630 mA @ 16.8V


Loading Current


310 mA @ 10.0V
360 mA @ 11.1V
470 mA @ 12.6V
510 mA @ 14.4V
620 mA @ 16.8V


Loading Current
4100 mA @ 10.0V
4500 mA @ 11.1V
5600 mA @ 12.6V
6400 mA @ 14.4V
7300 mA @ 16.8V
